Attacks on industrial enterprises using RMS and TeamViewer
3.8.18 Kaspersky Attack

Main facts
Kaspersky Lab ICS CERT has identified a new wave of phishing emails with malicious attachments targeting primarily companies and organizations that are, in one way or another, associated with industrial production.

The phishing emails are disguised as legitimate commercial offers and are sent mainly to industrial companies located in Russia. The content of each email reflects the activity of the organization under attack and the type of work performed by the employee to whom the email is sent.

According to the data that we have collected, this series of attacks started in November 2017 and is currently in progress. Notably, the first similar attacks were recorded as far back as 2015.

The malware used in these attacks installs legitimate remote administration software – TeamViewer or Remote Manipulator System/Remote Utilities (RMS). This enables the attackers to gain remote control of infected systems. The threat actor uses various techniques to mask the infection and the activity of malware installed in the system.

According to the data available, the attackers’ main goal is to steal money from victim organizations’ accounts. When attackers connect to a victim’s computer, they search for and analyze purchase documents, as well as the financial and accounting software used. After that, the attackers look for various ways in which they can commit financial fraud, such as spoofing the bank details used to make payments.

In cases where the cybercriminals need additional data or capabilities after infecting a system, such as privilege escalation and obtaining local administrator privileges, the theft of user authentication data for financial software and services, or Windows accounts for lateral movement, the attackers download an additional pack of malware to the system, which is specifically tailored to the attack on each individual victim. The malware pack can include spyware, additional remote administration utilities that extend the attackers’ control on infected systems, malware for exploiting operating system and application software vulnerabilities, as well as the Mimikatz utility, which provides the attackers with Windows account data.

Apparently, among other methods, the attackers obtain the information they need to perpetrate their criminal activity by analyzing the correspondence of employees at the enterprises attacked. They may also use the information found in these emails to prepare new attacks – against companies that partner with the current victim.

Clearly, on top of the financial losses, these attacks result in leaks of the victim organizations’ sensitive data.

Phishing emails
In most cases, the phishing emails have finance-related content; the names of attachments also point to their connection with finance. Specifically, some of the emails purport to be invitations to tender from large industrial companies (see below).

Malicious attachments may be packed into archives. Some of the emails have no attachments – in these cases, message text is designed to lure users into following links leading to external resources and downloading malicious objects from those resources.

Below is a sample phishing email used in attacks on some organizations:

Screenshot of a phishing email

The above email was sent on behalf of a well-known industrial organization. The domain name of the server from which the message was sent was similar to the domain name of that organization’s official website. The email had an archive attached to it. The archive was protected with a password that could be found in the message body.

It is worth noting that the attackers addressed an employee of the company under attack by his or her full name (this part of the email was masked in the screenshot above for confidentiality reasons). This indicates that the attack was carefully prepared and an individual email that included details relevant to the specific organization was created for each victim.

As part of the attacks, the threat actor uses various techniques to mask the infection. In this case, Seldon 1.7 – legitimate software designed to search for tenders – is installed in infected systems in addition to malware components and a remote administration application.

To keep users from wondering why they didn’t get information on the procurement tender referred to in the phishing email, the malicious program distributes a damaged copy of Seldon 1.7 software.

Window of legitimate software Seldon 1.7

In other cases, the user is shown a partially damaged image.

Image opened by malware

There is also a known case of malware being masked as a PDF document containing a bank transfer receipt. Curiously, the receipt contains valid data. Specifically, it mentions existing companies and their valid financial details; even a car’s VIN matches its model.

Screenshot of a bank transfer receipt displayed by malware

The malware used in these attacks installs legitimate remote administration software – TeamViewer or Remote Manipulator System/Remote Utilities (RMS).

Attacks using RMS
There are several known ways in which the malware can be installed in a system. Malicious files can be run either by an executable file attached to an email or by a specially crafted script for the Windows command interpreter.

For example, the archive mentioned above contains an executable file, which has the same name and is a password-protected self-extracting archive. The archive extracts the files and runs a script that installs and launches the actual malware in the system.

Contents of the malware installation file

It can be seen from the commands in the screenshot above that after copying the files the script deletes its own file and launches legitimate software in the system – Seldon v.1.7 and RMS, – enabling the attackers to control the infected system without the user’s knowledge.

Depending on the malware version, files are installed in %AppData%\LocalDataNT folder %AppData%\NTLocalData folder or in %AppData%\NTLocalAppData folder.

When it launches, legitimate RMS software loads dynamic libraries (DLL) required for the program’s operation, including the system file winspool.drv, which is located in the system folder and is used to send documents to the printer. RMS loads the library insecurely, using its relative path (the vendor has been notified of this vulnerability). This enables the attackers to conduct a DLL hijacking attack: they place a malicious library in the same directory with the RMS executable file, as a result of which a malware component loads and gains control instead of the corresponding system library.

The malicious library completes malware installation. Specifically, it creates a registry value responsible for automatically running RMS at system startup. Notably, in most cases of this campaign the registry value is placed in the RunOnce key, instead of the Run key, enabling the malware to run automatically only the next time the system starts up. After that, the malware needs to create the registry value again.

It is most likely that the attackers chose this approach to mask the presence of malware in the system as well as possible. The malicious library also implements techniques for resisting analysis and detection. One such technique involves dynamically importing Windows API functions using their hashes. This way, the attackers do not have to store the names of these functions in the malicious library’s body, which helps them to conceal the program’s real functionality from most analysis tools.

Part of a malicious code fragment implementing the dynamic import of functions

The malicious dynamic library, winspool.drv, decrypts configuration files prepared by the attackers, which contain RMS software settings, the password for remotely controlling the machine and the settings needed to notify the attackers that the system has been successfully infected.

One of the configuration files contains an email address to which information about the infected system is sent, including computer name, user name, the RMS machine’s Internet ID, etc. The Internet ID sent as part of this information is generated on a legitimate server of the RMS vendor after the computer connects to it. The identifier is subsequently used to connect to the remotely controlled system located behind NAT (a similar mechanism is also used in popular instant messaging solutions).

A list of email addresses found in the configuration files discovered is provided in the indicators of compromise section.

A modified version of RC4 is used to encrypt configuration files. Configuration files from the archive mentioned above are shown below.

Decrypted contents of InternetId.rcfg file

Decrypted contents of notification.rcfg file

Decrypted contents of Options.rcfg file

Decrypted contents of Password.rcfg file

After this, the attackers can use the system’s Internet ID and password to control it without the user’s knowledge via a legitimate RMS server, using the standard RMS client.

Attacks using TeamViewer
Attacks using legitimate TeamViewer software are very similar to those using RMS software, which are described above. A distinguishing feature is that information from infected systems is sent to malware command-and-control servers, rather than the attackers’ email address.

As in the case of RMS, malicious code is injected into the TeamViewer process by substituting a malicious library for system DLL. In the case of TeamViewer, msimg32.dll is used.

This is not a unique tactic. Legitimate TeamViewer software has been used in APT and cybercriminal attacks before. The best-known group to have used this toolset is TeamSpy Crew. We believe that the attacks described in this document are not associated with TeamSpy and are the result of known malware being re-used by another cybercriminal group. Curiously, the algorithm used to encrypt the configuration file and the password for decrypting it, which were identified in the process of analyzing these attacks, are the same as those published last April in a description of similar attacks.

It is common knowledge that legitimate TeamViewer software does not hide its startup or operation from the user and, specifically, notifies the user of incoming connections. At the same time, the attackers need to gain remote control of the infected system without the user’s knowledge. To achieve this, they hook several Windows API functions.

The functions are hooked using a well-known method called splicing. As a result, when legitimate software calls one of the Windows API functions, control is passed to the malicious DLL and the legitimate software gets a spoofed response instead of one from the operating system.

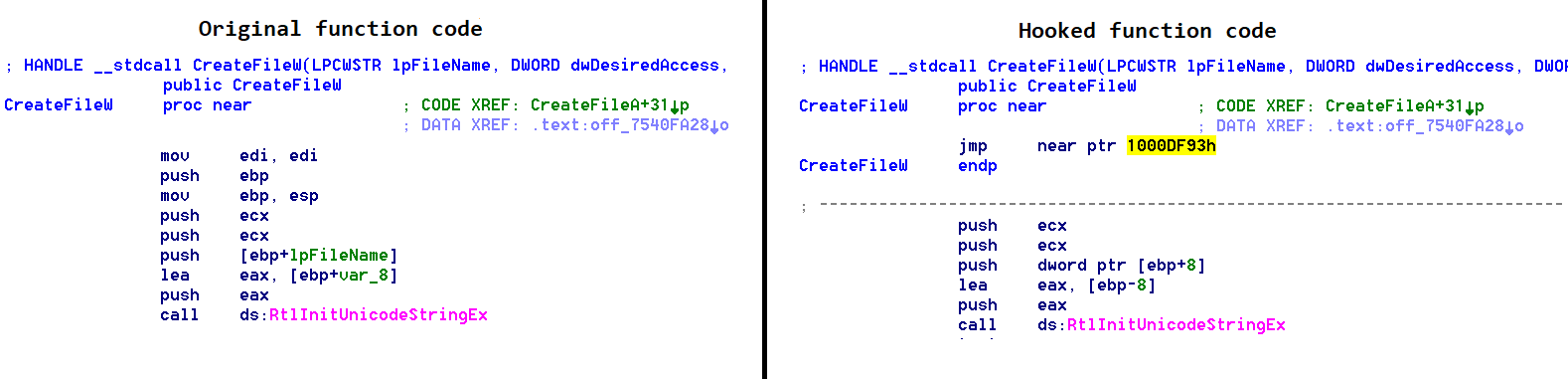

Windows API function hooked by the malware

Hooking Windows API functions enables attackers to hide TeamViewer windows, protect malware files from being detected, and control TeamViewer startup parameters.

After launching, the malicious library checks whether an internet connection is available by executing the command “ping 1.1.1.1” and then decrypts the malicious program’s configuration file tvr.cfg. The file contains various parameters, such as the password used for remotely controlling the system, URL of the attackers’ command-and-control server, parameters of the service under whose name TeamViewer will be installed, the User-Agent field of the HTTP header used in requests sent to the command-and-control server, VPN parameters for TeamViewer, etc.

Screenshot of decrypted contents of the malware configuration file

Unlike RMS, Team Viewer uses a built-in VPN to remotely control a computer located behind NAT.

As in the case of RMS, the relevant value is added to the RunOnce registry key to ensure that the malware runs automatically at system startup.

The malware collects data on the infected machine and sends it to the command-and-control server along with the system’s identifier needed for remote administration. The data sent includes:

Operating system version
User name
Computer name
Information on the privilege level of the user on whose behalf the malware is running
Whether or not a microphone and a webcam are present in the system
Whether or not antivirus software or other security solutions are installed, as well as the UAC level
Information about security software installed in the system is obtained using the following WQL query:

root\SecurityCenter:SELECT * FROM AntiVirusProduct

The information collected is sent to the attackers’ server using the following POST request:

POST request used to send encrypted data to the command-and-control server

Another distinguishing feature of attacks that involve the TeamViewer is the ability to send commands to an infected system and have them executed by the malware. Commands are sent from the command-and-control server using the chat built into the TeamViewer application. The chat window is also hidden by the malicious library and the log files are deleted.

A command sent to an infected system is executed in the Windows command interpreter using the following instruction:

cmd.exe /c start /b

The parameter “/b” indicates that the command sent by the attackers for execution will be run without creating a new window.

The malware also has a mechanism for self-destructing if the appropriate command is received from the attackers’ server.

The use of additional malware
In cases where attackers need additional data (authorization data, etс.), they download spyware to victim computers in order to collect logins and passwords for mailboxes, websites, SSH/FTP/Telnet clients, as well as logging keystrokes and making screenshots.

Additional software hosted on the attackers’ servers and downloaded to victims’ computers was found to include malware from the following families:

Babylon RAT
Betabot/Neurevt
AZORult stealer
Hallaj PRO Rat
In all probability, these Trojans were downloaded to compromised systems and used to collect information and steal data. In addition to remote administration, the capabilities of malware from these families include:

Logging keystrokes
Making screenshots
Collecting system information and information on installed programs and running processes
Downloading additional malicious files
Using the computer as a proxy server
Stealing passwords from popular programs and browsers
Stealing cryptocurrency wallets
Stealing Skype correspondence
Conducting DDoS attacks
Intercepting and spoofing user traffic
Sending any user files to the command-and-control server
In other cases observed, after an initial analysis of an infected system, the attackers downloaded an additional malware module to the victim’s computer – a self-extracting archive containing various malicious and legitimate programs, which were apparently individually selected for each specific system.

For example, if the malware had previously been executed on behalf of a user who did not have local administrator privileges, to evade the Windows User Account Control (UAC), the attackers used the DLL hijacking technique mentioned above, but this time on a Windows system file, %systemdir%\migwiz\migwiz.exe, and a library, cryptbase.dll.

Additionally, another remote administration utility, RemoteUtilities, which provides a more extensive feature set for controlling an infected machine than RMS or TeamViewer, has been installed in some systems. Its capabilities include:

Remotely controlling the system (RDP)
Transferring files to and from the infected system
Controlling power on the infected system
Remotely managing the processes of running application
Remote shell (command line)
Managing hardware
Capturing screenshots and screen videos
Recording sound and video from recording devices connected to the infected system
Remote management of the system registry
The attackers use a modified build of RemoteUtilities, which enables them to perform the above operations without the user’s knowledge.

In some cases, the Mimikatz utility was installed in addition to cryptbase.dll and RemoteUtilities. We believe that the attackers use Mimikatz in cases when the first system infected is not one that has software for working with financial data installed on it. In these cases, the Mimikatz utility is used to steal authentication data from the organization’s employees and gain remote access to other machines on the enterprise’s network. The use of this technique by the attackers poses a serious danger: if they succeed in obtaining the account credentials for the domain administrator’s account, this will give them control of all systems on the enterprise’s network.

Attack targets
According to KSN data, from October 2017 to June 18, about 800 computers of employees working at industrial companies were attacked using the malware described in this paper.

Number of computers attacked by month. October 2017 – June 18

According to our estimate, at least 400 industrial companies in Russia have been targeted by this attack, including companies in the following industries:

Manufacturing
Oil and gas
Metallurgy
Engineering
Energy
Construction
Mining
Logistics
Based on this, it can be concluded that the attackers do not concentrate on companies in any specific industry or sector. At the same time, their activity clearly demonstrates their determination to compromise specifically systems belonging to industrial companies. This choice on the part of the cybercriminals could be explained by the fact that the threat awareness and cybersecurity culture in industrial companies is inferior to that in companies from other sectors of the economy (such as banks or IT companies). At the same time, as we have noted before, it is more common for industrial companies than for companies in other sectors to conduct operations involving large amounts of money on their accounts. This makes them an even more attractive target for cybercriminals.

Conclusions
This research demonstrates once again that even when they use simple techniques and known malware, threat actors can successfully attack many industrial companies by expertly using social engineering and masking malicious code in target systems. Criminals actively use social engineering to keep users from suspecting that their computers are infected. They also use legitimate remote administration software to evade detection by antivirus solutions.

This series of attacks targets primarily Russian organizations, but the same tactics and tools can be used in attacks against industrial companies in any country of the world.

We believe that the threat actor behind this attack is highly likely to be a criminal group whose members have a good command of Russian. This is indicated by the high level at which texts in Russian are prepared for phishing emails used in the attack, as well as the attackers’ ability to make changes to organizations’ financial data in Russian. More data about the research on the infrastructure and language used by the attackers is available in the private version of the report on the Treat Intelligence portal.

Remote administration capabilities give criminals full control of compromised systems, so possible attack scenarios are not limited to the theft of money. In the process of attacking their targets, the attackers steal sensitive data belonging to target organizations, their partners and customers, carry out surreptitious video surveillance of the victim companies’ employees, and record audio and video using devices connected to infected machines.

The various malware components used in this attack are detected by Kaspersky Lab products with the following verdicts:

Trojan.BAT.Starter
Trojan.Win32.Dllhijack
Trojan.Win32.Waldek
Backdoor.Win32.RA-based
Backdoor.Win32.Agent
