New trends in the world of IoT threats

24.9.2018 Kaspersky IoT

Cybercriminals’ interest in IoT devices continues to grow: in H1 2018 we picked up three times as many malware samples attacking smart devices as in the whole of 2017. And in 2017 there were ten times more than in 2016. That doesn’t bode well for the years ahead.

We decided to study what attack vectors are deployed by cybercriminals to infect smart devices, what malware is loaded into the system, and what it means for device owners and victims of freshly armed botnets.

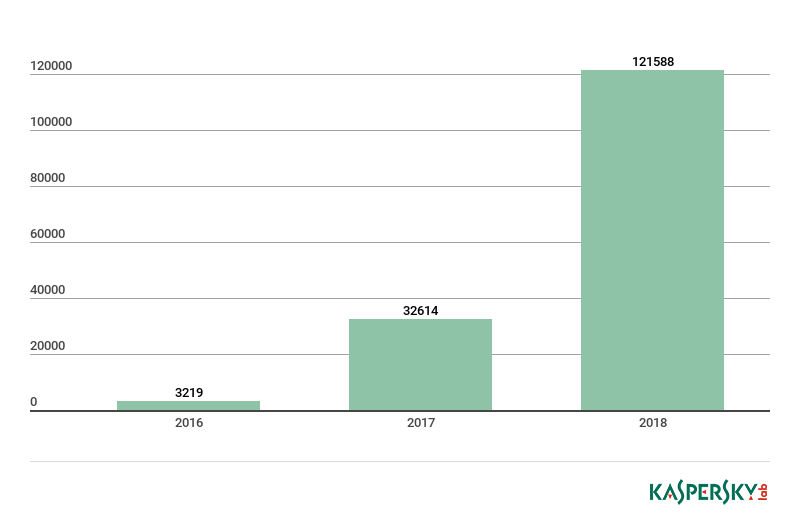

Number of malware samples for IoT devices in Kaspersky Lab’s collection, 2016-2018. (download)

One of the most popular attack and infection vectors against devices remains cracking Telnet passwords. In Q2 2018, there were three times as many such attacks against our honeypots than all other types combined.

service % of attacks
Telnet 75.40%
SSH 11.59%
other 13.01%
When it came to downloading malware onto IoT devices, cybercriminals’ preferred option was one of the Mirai family (20.9%).

# downloaded malware % of attacks
1 Backdoor.Linux.Mirai.c 15.97%
2 Trojan-Downloader.Linux.Hajime.a 5.89%
3 Trojan-Downloader.Linux.NyaDrop.b 3.34%
4 Backdoor.Linux.Mirai.b 2.72%
5 Backdoor.Linux.Mirai.ba 1.94%
6 Trojan-Downloader.Shell.Agent.p 0.38%
7 Trojan-Downloader.Shell.Agent.as 0.27%
8 Backdoor.Linux.Mirai.n 0.27%
9 Backdoor.Linux.Gafgyt.ba 0.24%
10 Backdoor.Linux.Gafgyt.af 0.20%
Top 10 malware downloaded onto infected IoT device following a successful Telnet password crack

And here are the Top 10 countries from which our traps were hit by Telnet password attacks:

Geographical distribution of the number of infected devices, Q2 2018. (download)

As we see, in Q2 2018 the leader by number of unique IP addresses from which Telnet password attacks originated was Brazil (23%). Second place went to China (17%). Russia in our list took 4th place (7%). Overall for the period January 1 – July 2018, our Telnet honeypot registered more than 12 million attacks from 86,560 unique IP addresses, and malware was downloaded from 27,693 unique IP addresses.

Since some smart device owners change the default Telnet password to one that is more complex, and many gadgets don’t support this protocol at all, cybercriminals are constantly on the lookout for new ways of infection. This is stimulated by the high competition between virus writers, which has led to password bruteforce attacks becoming less effective: in the event of a successful crack, the device password is changed and access to Telnet is blocked.

An example of the use of “alternative technology” is the Reaper botnet, whose assets at end-2017 numbered about 2 million IoT devices. Instead of bruteforcing Telnet passwords, this botnet exploited known software vulnerabilities:

Vulnerabilities in D-Link 850L router firmware
Vulnerabilities in GoAhead IP cameras
Vulnerabilities in MVPower CCTV cameras
Vulnerability in Netgear ReadyNAS Surveillance
Vulnerability in Vacron NVR
Vulnerability in Netgear DGN devices
Vulnerabilities in Linksys E1500/E2500 routers
Vulnerabilities in D-Link DIR-600 and DIR 300 – HW rev B1 routers
Vulnerabilities in AVTech devices
Advantages of this distribution method over password cracking:

Infection occurs much faster
It is much harder to patch a software vulnerability than change a password or disable/block the service
Although this method is more difficult to implement, it found favor with many virus writers, and it wasn’t long before new Trojans exploiting known vulnerabilities in smart device software started appearing.

New attacks, old malware
To see which vulnerabilities are targeted by malware, we analyzed data on attempts to connect to various ports on our traps. This is the picture that emerged for Q2 2018:

Service Port % of attacks Attack vector Malware families
Telnet 23, 2323 82.26% Bruteforce Mirai, Gafgyt
SSH 22 11.51% Bruteforce Mirai, Gafgyt
Samba 445 2.78% EternalBlue, EternalRed, CVE-2018-7445 –
tr-069 7547 0.77% RCE in TR-069 implementation Mirai, Hajime
HTTP 80 0.76% Attempts to exploit vulnerabilities in a web server or crack an admin console password –
winbox (RouterOS) 8291 0.71% Used for RouterOS (MikroTik) authentication and WinBox-based attacks Hajime
Mikrotik http 8080 0.23% RCE in MikroTik RouterOS < 6.38.5 Chimay-Red Hajime
MSSQL 1433 0.21% Execution of arbitrary code for certain versions (2000, 2005, 2008); changing administrator password; data theft –
GoAhead httpd 81 0.16% RCE in GoAhead IP cameras Persirai, Gafgyt
Mikrotik http 8081 0.15% Chimay-Red Hajime
Etherium JSON-RPC 8545 0.15% Authorization bypass (CVE-2017-12113) –
RDP 3389 0.12% Bruteforce –
XionMai uc-httpd 8000 0.09% Buffer overflow (CVE-2018-10088) in XionMai uc-httpd 1.0.0 (some Chinese-made devices) Satori
MySQL 3306 0.08% Execution of arbitrary code for certain versions (2000, 2005, 2008); changing administrator password; data theft –
The vast majority of attacks still come from Telnet and SSH password bruteforcing. The third most common are attacks against the SMB service, which provides remote access to files. We haven’t seen IoT malware attacking this service yet. However, some versions of it contain serious known vulnerabilities such as EternalBlue (Windows) and EternalRed (Linux), which were used, for instance, to distribute the infamous Trojan ransomware WannaCry and the Monero cryptocurrency miner EternalMiner.

Here’s the breakdown of infected IoT devices that attacked our honeypots in Q2 2018:

Device % of infected devices
MikroTik 37.23%
TP-Link 9.07%
SonicWall 3.74%
AV tech 3.17%
Vigor 3.15%
Ubiquiti 2.80%
D-Link 2.49%
Cisco 1.40%
AirTies 1.25%
Cyberoam 1.13%
HikVision 1.11%
ZTE 0.88%
Miele 0.68%
Unknown DVR 31.91%
As can be seen, MikroTik devices running under RouterOS are way out in front. The reason appears to be the Chimay-Red vulnerability. What’s interesting is that our honeypot attackers included 33 Miele dishwashers (0.68% of the total number of attacks). Most likely they were infected through the known (since March 2017) CVE-2017-7240 vulnerability in PST10 WebServer, which is used in their firmware.

Port 7547
Attacks against remote device management (TR-069 specification) on port 7547 are highly common. According to Shodan, there are more than 40 million devices in the world with this port open. And that’s despite the vulnerability recently causing the infection of a million Deutsche Telekom routers, not to mention helping to spread the Mirai and Hajime malware families.

Another type of attack exploits the Chimay-Red vulnerability in MikroTik routers running under RouterOS versions below 6.38.4. In March 2018, it played an active part in distributing Hajime.

IP cameras
IP cameras are also on the cybercriminal radar. In March 2017, several major vulnerabilities were detected in the software of GoAhead devices, and a month after information about it was published, there appeared new versions of the Gafgyt and Persirai Trojans exploiting these vulnerabilities. Just one week after these malicious programs were actively distributed, the number of infected devices climbed to 57,000.

On June 8, 2018, a proof-of-concept was published for the CVE-2018-10088 vulnerability in the XionMai uc-httpd web server, used in some Chinese-made smart devices (for example, KKMoon DVRs). The next day, the number of logged attempts to locate devices using this web server more than tripled. The culprit for this spike in activity was the Satori Trojan, known for previously attacking GPON routers.

New malware and threats to end users
DDoS attacks
As before, the primary purpose of IoT malware deployment is to perpetrate DDoS attacks. Infected smart devices become part of a botnet that attacks a specific address on command, depriving the host of the ability to correctly handle requests from real users. Such attacks are still deployed by Trojans from the Mirai family and its clones, in particular, Hajime.

This is perhaps the least harmful scenario for the end user. The worst (and very unlikely) thing that can happen to the owner of the infected device is being blocked by their ISP. And the device can often by “cured” with a simple reboot.

Cryptocurrency mining
Another type of payload is linked to cryptocurrencies. For instance, IoT malware can install a miner on an infected device. But given the low processing power of smart devices, the feasibility of such attacks remains in doubt, even despite their potentially large number.

A more devious and doable method of getting a couple of cryptocoins was invented by the creators of the Satori Trojan. Here, the victim IoT device acts as a kind of key that opens access to a high-performance PC:

At the first stage, the attackers try to infect as many routers as possible using known vulnerabilities, in particular:
CVE-2014-8361 – RCE in the miniigd SOAP service in Realtek SDK
CVE 2017-17215 – RCE in the firmware of Huawei HG532 routers
CVE-2018-10561, CVE-2018-10562 – authorization bypass and execution of arbitrary commands on Dasan GPON routers
CVE-2018-10088 – buffer overflow in XiongMai uc-httpd 1.0.0 used in the firmware of some routers and other smart devices made by some Chinese manufacturers
Using compromised routers and the CVE-2018-1000049 vulnerability in the Claymore Etherium miner remote management tool, they substitute the wallet address for their own.
Data theft
The VPNFilter Trojan, detected in May 2018, pursues other goals, above all intercepting infected device traffic, extracting important data from it (user names, passwords, etc.), and sending it to the cybercriminals’ server. Here are the main features of VPNFilter:

Modular architecture. The malware creators can fit it out with new functions on the fly. For instance, in early June 2018 a new module was detected able to inject javascript code into intercepted web pages.
Reboot resistant. The Trojan writes itself to the standard Linux crontab job scheduler, and can also modify the configuration settings in the non-volatile memory (NVRAM) of the device.
Uses TOR for communication with C&C.
Able to self-destruct and disable the device. On receiving the command, the Trojan deletes itself, overwrites the critical part of the firmware with garbage data, and then reboots the device.
The Trojan’s distribution method is still unknown: its code contains no self-propagation mechanisms. However, we are inclined to believe that it exploits known vulnerabilities in device software for infection purposes.

The very first VPNFilter report spoke of around 500,000 infected devices. Since then, even more have appeared, and the list of manufacturers of vulnerable gadgets has expanded considerably. As of mid-June, it included the following brands:

ASUS
D-Link
Huawei
Linksys
MikroTik
Netgear
QNAP
TP-Link
Ubiquiti
Upvel
ZTE
The situation is made worse by the fact that these manufacturers’ devices are used not only in corporate networks, but often as home routers.

Conclusion
Smart devices are on the rise, with some forecasts suggesting that by 2020 their number will exceed the world’s population several times over. Yet manufacturers still don’t prioritize security: there are no reminders to change the default password during initial setup or notifications about the release of new firmware versions, and the updating process itself can be complex for the average user. This makes IoT devices a prime target for cybercriminals. Easier to infect than PCs, they often play an important role in the home infrastructure: some manage Internet traffic, others shoot video footage, still others control domestic devices (for example, air conditioning).

Malware for smart devices is increasing not only in quantity, but also quality. More and more exploits are being weaponized by cybercriminals, and infected devices are used to steal personal data and mine cryptocurrencies, on top of traditional DDoS attacks.

Here are some simple tips to help minimize the risk of smart device infection:

Don’t give access to the device from an external network unless absolutely necessary
Periodic rebooting will help get rid of malware already installed (although in most cases the risk of reinfection will remain)
Regularly check for new firmware versions and update the device
Use complex passwords at least 8 characters long, including upper and lower-case letters, numerals, and special characters
Change the factory passwords at initial setup (even if the device does not prompt you to do so)
Close/block unused ports, if there is such an option. For example, if you don’t connect to the router via Telnet (port TCP:23), it’s a good idea to disable it so as to close off a potential loophole to intruders.
