Nimar
Loader
Baza (BazarLoader & BazarBackdoor) has been attributed
to the organized cybercrime group behind Trickbot by multiple security vendors
over the past year. Initially appearing around April of 2020 , the malware was
spread in email campaigns utilizing infrastructure previously used to distribute
Trickbot. The term BazarLoader was coined due to the reliance and use of
Blockchain-DNS and the associated bazar domains used to communicate with the
controllers. Since then, the terms Baza or Bazarloader have been used
interchangeably to reference this particular malware family.
After the initial appearance of Baza, multiple reports attributing various code
to the malware family appeared.It became increasingly obvious that development
was on going and multiple projects were under construction. The downside to such
a public following, is the common acceptance of activity based on previous TTPS.
Combining TTPs such as loading powershell stagers into red team utilities along
with similar campaign structures and C2 traffic patterns, can quickly lead to
incorrect attribution of malware families and actors.
On Feb 3, we detected campaigns previously attributed to Baza but the malware
utilized request headers that were different. Several others noticed oddities as
well. Further analysis indicated something completely different and new. Nimar
loader did not share the same codebase as the baza family.
NimarLoader or Nimrod recently mistaken as BazarLoader, is coded in Nim. The
malware was obfuscated but did not contain the typical hardening seen in large
scale campaigns. Since it was something newly developed, crypting the sample was
unnecessary but it is curiously absent making analysis less difficult. From the
strings, hints at the capability can be clearly seen.
verb in @["GET", "POST"]
@https
@fKHMP]
@SPMVDSD
job_type
job_args
job_results
@heartbeat set
@HEARTBEAT set Failed
@HEARTBEAT set
@Shellcode Done
@heartbeat
@shellcode
@handshake
@No update data recieved
agentId
pathAdj
pathNoun
seqNum
seqTotal
jobIdHeader
userAgent
serverPubKeyEncoded
jitterParamStr
sessionKey
sessionDie
The command table allows to handshake, heartbeat, shellcode, powershell or cmd,
as evidenced in the strings seen during execution.

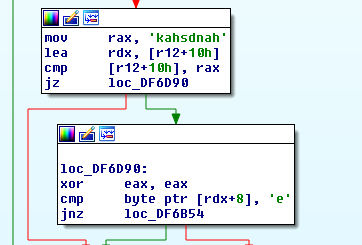

Image1: handshake

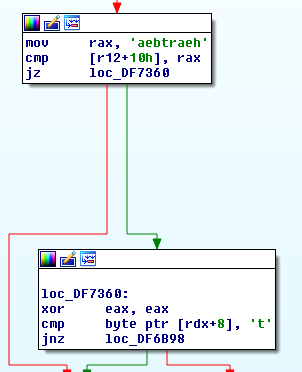

Image2: heartbeat

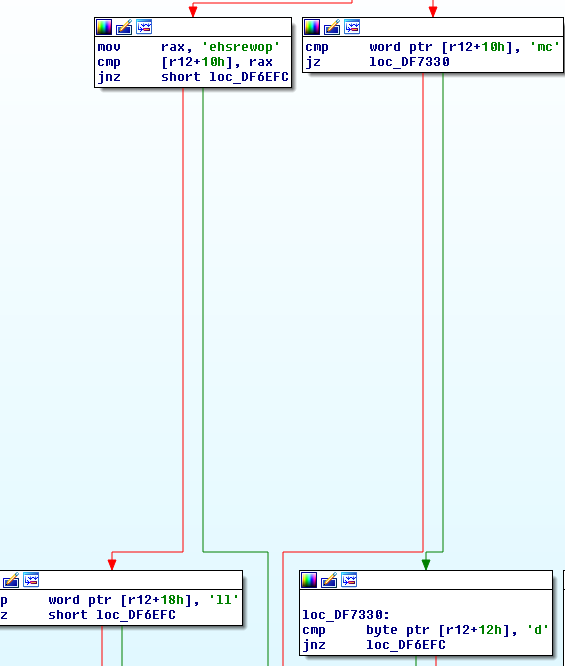

Image3. powershell or cmd
Image4: shellcode
Image5: unknown command
While some of the strings are visible, a string encoding and decoding routine
exists.
Image6: Decoding routine
The decoding loop XORs every byte of the encoded string with every byte of the
key and then increments the key by one, due to how XOR works this is the same as
XOR encoding every byte with a single XOR byte and incrementing the key by the
iterator in a rolling single byte XOR loop.

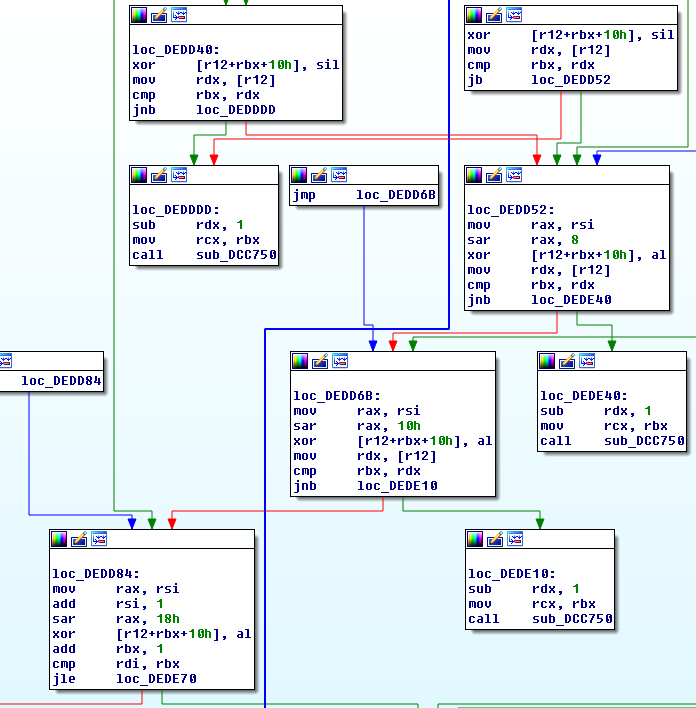

Image7: Decoding Loop

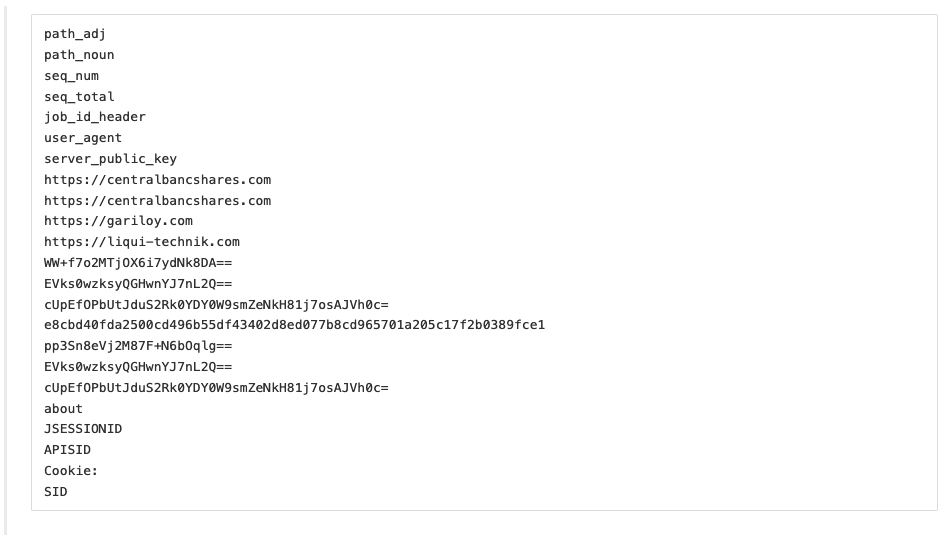

After running the routine the following strings are decrypted:
As referenced earlier, the sample functions a bit like a loader, with the
ability to process shellcode and execute tasks or jobs via cmd or powershell.
Similar to the majority of Baza campaigns, the tasks that were executed came in
the form of cobalt strike stagers. The benefit of using this “fileless”
mechanism, is nothing touches disk.
Upon execution, a callout is made by the stager to topservicebin[.]com. During
the campaign, the domain resolved to the ip 45.141.87 .41 which contained the
following SSL certificate.

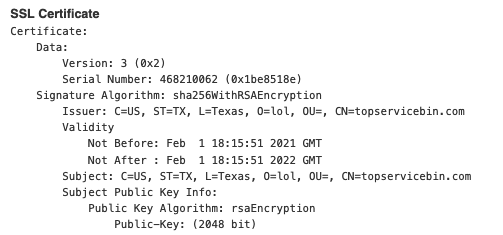

Image8: SSL Cert

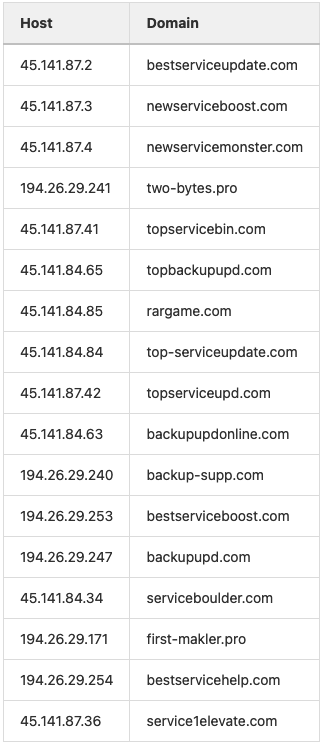

The following are all Cobalt Strike servers with matching or similar certs,
sharing the same hosting provider.
Nearly identical infrastructure has been positively associated with the
deployment of not only BazarLoader but with the deployment of RYUK by Mandiant
last October.
Nimar Loader appears to be partially based on existing code or perhaps the idea
originated elsewhere. The actors behind TrickBot have incorporated free
utilities and software developed by the CyberSecurity or opensource communities
for their own nefarious purposes (MiniLZO, BloodHound, CobaltStrike, PowerSploit,
Obfuscator-LLVM, ADVobfuscator…) in the past. While the nim language is not new
to the offensive scene, it is quite a departure for the traditional tooling of
Trickbot.
